Displays

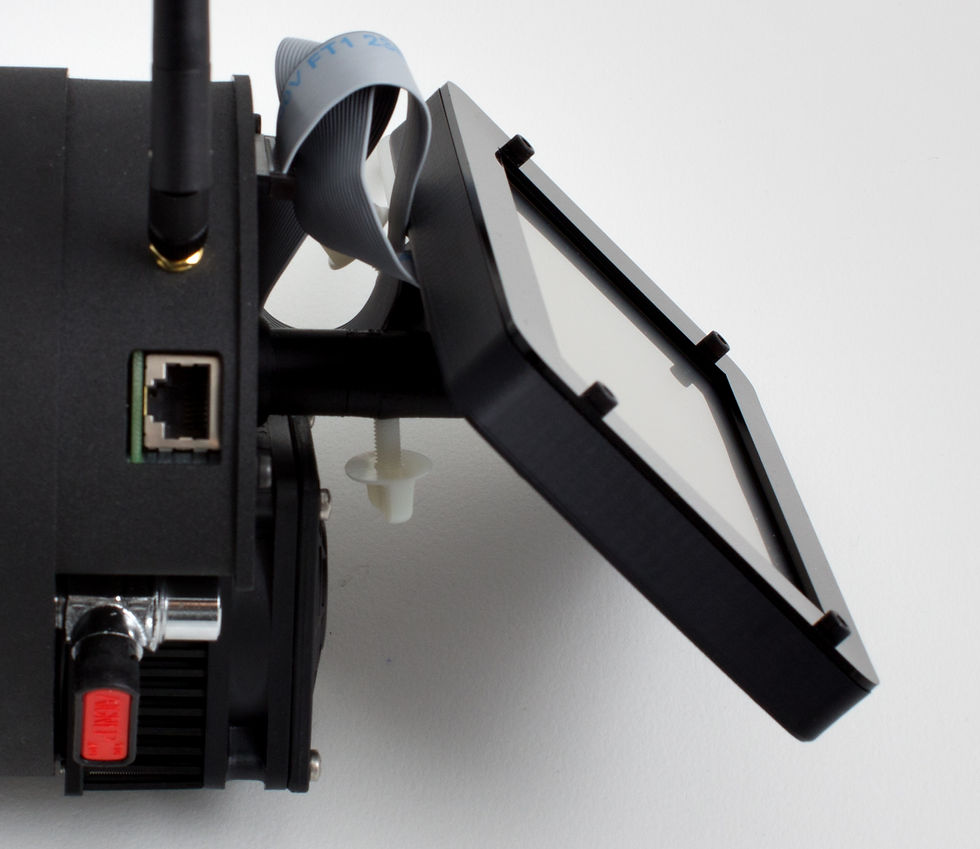

The touch-screen LCDs are the basic accessories to let Astrel cameras work in stand alone mode, without the need of a PC connected through wifi or Ethernet cable. The Display Module is connected directly to the Camera processor via a dedicated LCD bus providing precise touch response and fast frame rate. The resistive touch-screen allows the full control of the camera in every harsh conditions preserving your PC. The LCD can be easily attached and removed from the rear of the Camera. Thanks to a supporting system based on knobs and clamps it is possible to put the display in any proper position with respect to the Camera in few seconds

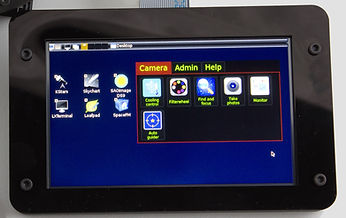

5" Touch Display

AST8300-B

Available for:

AST16200-B

1/1

The AST-DU-5-A module features:

- Full Color TFT 5" Liquid Crystal Display

- Resistive Touch Screen

- LED Back-Light with On/Off and dimming control

- Display bus Flat Cable

- Configurable-position camera supporting system

- Included resistive touch-stylus

Technical Characteristics

Module Size  ............................ 145 mm (X) x 92 mm (Y) x 15 mm (Z)

LCD Type ................................. TFT

​Aspect Ratio ............................ 16 : 9
Viewing Area ............................ 108.0 mm (X) x 64.8 mm (Y)

​Resolution ................................ 800 x 480 pxls​

Colors / Grey Levels .................. 16.7 M / 256

​Backlight Sources ..................... Twelve White LEDs

AST-DU-5-A .................. € 130,00 (VAT excl.)

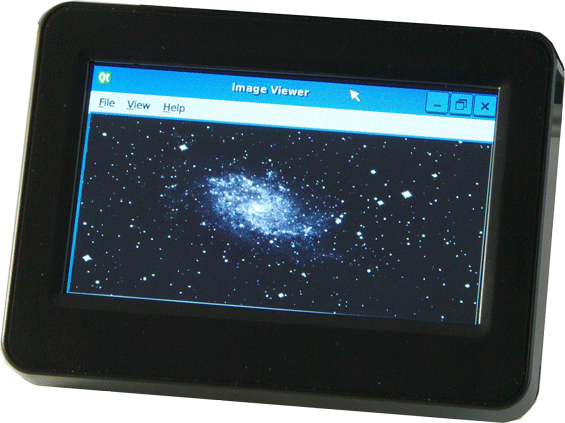

4.3" Touch Display

1/1

Available for:

AST8300-A

The AST-DU-4.3-A module features:

- Color TFT 4.3" Liquid Crystal Display

- Resistive Touch Screen

- Back-Light with On/Off and dimming control

- Display bus Flat Cable

- Configurable-position camera supporting system

- Included touch-stylus

Technical Characteristics

Module Size  ............................ 122 mm (X) x 89 mm (Y) x 18 mm (Z)

LCD Type ................................. TFT

​Aspect Ratio ............................ 16 : 9
Viewing Area ............................ 95.0 mm (X) x 53.9 mm (Y)

​Resolution ................................ 480 x 272 pxls​

Colors / Grey Levels .................. 1024 / 256

​Backlight Sources ..................... Seven White LEDs

AST-DU-4.3-A .................. € 100,00 (VAT excl.)
